Cold/Hot Peel Matte Heat Transfer Printing Digital Films for Ricoh/HP Indigo/Oki Toner Laser Printer

Contact Now* Send an Inquiry to this supplier.
or
Start Order * Name your price

Contact us

Dongguan City Xinhe Transfer Materials Co.,Ltd
[China]

Address
No.54,11 Road,Longyan Industrial Dongguan Guangdong
Phone
86-131-25003813
Contact name
Echo Chen

Quick Information

  • Brand Name: Xinheheattransferfilmheattransferpaper
  • Place of Origin: China
  • Model Number : DG digital heat transfer film
  • Materials : heat transfer film
  • Size : 48x64cm
  • Thickness : 75/100micron
  • Peel Type : cold peel
  • Peel Types : hot peel
  • Finish Type : glossy finish
  • Finish Types : matte finish
  • Printing Ink : water based ink
  • Printing Inks : plastisol ink

Description

Cold/Hot Peel Matte Heat Transfer Printing Digital Films for Ricoh/HP Indigo/Oki Toner Laser Printer and Inkjet Printers




Part One : Characteristics of XINHE'S SL-4L Hot Peel Glossy Finish Heat Transfer PET Films.

Description

The SL-4L glossy heat transfer film is a hot peel type, and must be torn off quickly after pressing for 12 seconds. Our polyester film will brighten the pattern or the text on the clothes,garments,textiles and so on. thus giving the logo a more attractive appearance and performance, and leads to a high end visual impact.


Applications

  • Printing types: screen printing, digital printing
  • Printing inks: oil based ink, water based ink, plastisol ink.
  • Coating techniques: powder scattering, liquid adhesive coating.
  • Printing Equipment: automatic or semi-automatic screen printing machine and Heidelberg 4-color offset printing machine.
  • Applicable heat transfer materials: cottons, chemical fiber, cotton blend fabrics, EVA, non-woven fabrics, leather and other heat resistant fabrics.

Parameters

  • Thickness: 36um, 50um, 75um, 100um;
  • Size information: 39×54cm, 64×48cm, 50×70cm or customized;
  • Heat transfer temperature: 150 degrees;
  • Heat transfer time: 12 seconds;
  • Color: milky




Part Two: More details about our heat transfer PET films -heat transfer PET films & heat transfer papers


APPLICATIONS - heat transfer PET films & heat transfer papers


1. Printing types: screen printing -heat transfer PET films & heat transfer papers.


2. Image type: wash label, neck label, decoration label, main label etc -heat transfer PET films & heat transfer papers.


3. ​Printing inks: oil based ink, water based ink, plastisol ink, hotmelt glue/adhesive, hot melt powder -heat transfer PET films & heat transfer papers


4. Printing Equipment: automatic printing machine, semi automatic machine, roll to roll jumbos machine -heat transfer PET films & heat transfer papers

5. Applicable heat transfer materials: cottons, chemical fiber, cotton blend fabrics, EVA, non-woven fabrics, leather, and other heat resistant fabrics. -heat transfer PET films & heat transfer papers



PARAMETERS - heat transfer PET films & heat transfer papers


1. Thickness: 75um, 100um; -heat transfer PET films & heat transfer papers


2. Size information: 39×54cm, 64×48cm, 50×70cm or as per customer requirements; -heat transfer PET films & heat transfer papers


3. Heat transfer temperature: 160 degrees or depending on the melting point of adhesives or hot melt powders used; -heat transfer PET films & heat transfer papers


4. Heat transfer time: 12 seconds -heat transfer PET films & heat transfer papers




OUTSTANDING POINTS - heat transfer PET films & heat transfer papers


1. Use top quality base film, dimensional stablized, minimum shrinkage, 180C, 1 minutes heat, shrink 2~3mm. -heat transfer PET films & heat transfer papers


2. Excellent printing result, we have special coating to make maximum ink absord on the film;-heat transfer PET films & heat transfer papers


3. Scratch resistance, coating material will not easy scratch off the film, after transfer, coating will not transfer to the fabric; -heat transfer PET films & heat transfer papers


4. Excellent printing result, we make special coating material to help to maximum ink absord, ink fastness is good after transfer; -heat transfer PET films & heat transfer papers


5. Professional and experience sales guide, we can provide printing technical guidance, we can help with problems happens during the printing process; -heat transfer PET films & heat transfer papers


6. OEKO TEX certified, Appendix 4, class II. -heat transfer PET films & heat transfer papers


7. Strict quality control system, before every shipment, we tested size stablized after 180C, 1 min; release figure, thickness after coating,coating eveness, matt degree, simple printing test or follow customer request. -heat transfer PET films & heat transfer papers



Explanation- heat transfer PET films & heat transfer papers
1. Customers have different requirements for transfer material thickness when printing on fabric or leather. For example, when printing on leather that can’t withstand a high temperature or long term pressing, choose a thickness of 36um. The 75um thickness is another popular choice, and used for a variety of textile materials. A 100um thickness has the best temperature resistance, and can be used for printing silicone patterns.


2. Transfer material thickness will affect the drying temperature of ink, and the melting temperature for adhesives and hot melt powder. If customers aren’t sure about what the right thickness for their needs is, we will prepare a range of film samples in different thickness levels for them to work with in determining their needs.


3. Weather also has an impact on film release. Depending on if an environment is too wet or too cold, customers should adjust their workshop temperature.


4. Folding or scratching the printed surface of film during the printing process will destroy the release coating on films, and may impact a printing effect.


5. Xinhe’s Heat Transfer Vinyl should be stored in dry and ventilated environment, and has a shelf life up to 1 year.


6. Xinhe can adjust the coating formula to satisfy the customization needs for the release force, thickness and any other properties.


We provide various types of vinyl transfer films for textile and leather, including T-shirt, cotton clothes, non-woven fabric and more. First, the images are printed on the surface of the film, and then we transfer the images from the film to textiles by heat pressing. We provide two types of the transfer films, one is hot peel transfer film that needs to be released in 12 seconds, and the other is cold peel transfer film. There are many models that can be applied for screen printing machines and digital printers.


​- Slitting of heat transfer PET films from Xinhe heat transfer
 - Slitting of heat transfer PET films from Xinhe heat transfer
 - Anti-static treatment on the back of the heat transfer PET films from Xinhe heat transfer
 - SL-4L Hot Peel Glossy Finish Heat Transfer PET Films from Xinhe Heat Transfer








Part Three : Introduction of XINHE HEAT TRANSFER MATERIALS -heat transfer PET film & heat transfer paper manufacturer in Dongguan China

Xinhe has 14 years of r&d experiences since it was established in 2006.we have more than 13 heat transfer film models with mature technology today.The main products we can offer are: Hot peel(Cold peel,Cold and Hot peel) / Matte finish(Glossy finsih) / Screen printing(Offset printing,Digital printing) heat transfer release film,heat transfer paper,silicone film,reflective film,sublimation ink,and heat press. Xinhe has also achieved the OEkO-TEX certification and MSDS in June,2017,which is the recognition of our products. -heat transfer PET films & heat transfer papers


There are 3 coating machines in our workshop,the average volume of heat transfer films we produce is about 100,000 sheets per day.the production lines are busy all day to meet the demands of customers from all over the world. -heat transfer PET films & heat transfer papers


By the way,pls kindly check the video of Xinhe in YouTube https://m.youtube.com/watch?v=HjRcNOzio30&list=LLr9BChb7HsN1afyt5XOWPdA&index=2&t=24s,it's a more visible way to see us. -heat transfer PET films & heat transfer papers


And you are sincerely welcomed to visit us in Dongguan city during your coming business trip,hope we can have a further discussion. -heat transfer PET films & heat transfer papers



 - Xinhe Heat Transfer 's building

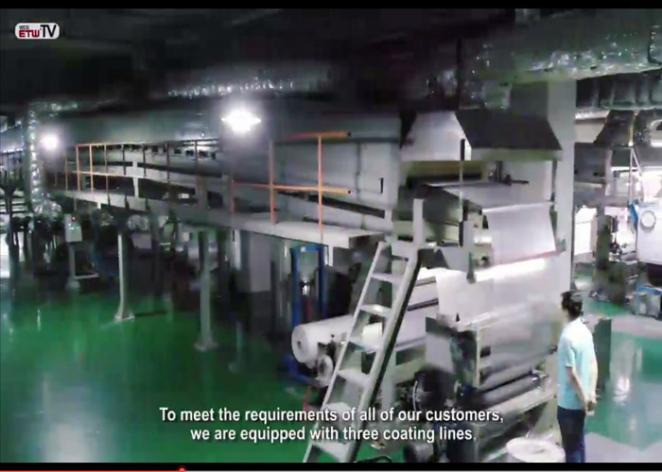

 - Xinhe Heat Transfer 's 3 lines of Coating Machines
 - Xinhe Heat Transfer 's 3 lines of Coating Machines

 - Xinhe Heat Transfer 's Workshop







Part Four: Xinhe's product list here for your reference

Just tell us the item no. of the heat transfer PET films & heat transfer papers you are interested and we will quote with the best price. -heat transfer PET films & heat transfer papers


Dongguan city Xinhe Transfer Printing Material Co.,Ltd
Company Add:Room 54,Eleven Road,Longyan Industrial Zone Humen Town, Dongguan City, China
Contact person: Echo Chen

Website: http://www.xinhefilm.com;
Instagram: xinheheattransferfilm


Facebook: Xinhe Heat Transfer Films & Papers

Xinhe ProductDetailsPrinting types
ProductItem No.Peel typesFinish typesScreen printingOffset printingDigital printing
Heat transfer
PET film
SL-4LHot peelGlossyYESYES
SL-4Phalf-high glossyYES

SL-4YMatteYES

SL-6Cold peelhalf-high glossyYES

SL-5GlossyYES

SC-819MatteYES

S08YESYES
A08YES

S716Hot and Cold peelSingle-sided MatteYES

S716BDouble-sided MatteYES

Reflective filmRF-01Cold peelClear reflective filmYES

RF-02Grey reflective filmYES

Silver & Gold
Foil
SF-01Cold peelSilver foilYES

GF-01Gold foilYES

Heat transfer paperT-65ACold peelMatteYES

T-65RHot peelYES

Silicone filmF01Cold peelMatteYES

F02GlossyYES

Digital filmSL-4Y DigitalHot peelMatte

YES
S08 DigitalCold peel

YES



ProductPrinting inksHeat transfer conditionSpecification
Item No.Water
based ink
Oil
based ink
Plastisol inkSilicone inkThicknessSize information
SL-4LYESYESYESYES150 degrees,
12 seconds
36micron,
50micron,
75micron,
100micron;
39×54cm,
64×48cm,
50×70cm
or customized;
SL-4PYESYESYES
SL-4YYESYESYES
SL-6YESYESYES
SL-5YESYESYES
SC-819YESYESYES
S08YESYESYES
A08YESYESYES
S716YESYESYES
S716BYESYESYES
RF-01YESYESYES
75micron,
100micron;
RF-02YESYESYES
SF-01YESYESYES
50micron,75micron,
100micron;
GF-01YESYESYES
T-65AYESYESYES
50gsm,65gsm,
80gsm,100gs;
T-65RYESYESYES
F01


YES160 degrees,
25 seconds
100micron
F02


YES75micron
SL-4Y DigitalYESYESYES
150 degrees,
12 seconds
100micron32×48cm
or customized;
S08 DigitalYESYESYES


-heat transfer PET films & heat transfer papers







Part Five : OEKO-TEX Certificaite 2019 & Inspection report of XINHE's heat transfer release films. -heat transfer PET films & heat transfer papers







Dongguan Xinhe Heat Transfer Materials Co., Limited
Add:Room 54,Eleven Road,Longyan Industrial Zone Humen Town,Dongguan City, China
Heat Transfer PET Films Inspection report
Jan. 10.2020
To: -heat transfer PET films & heat transfer papers
Inspection Content -heat transfer PET films & heat transfer papers
Item No. &
Specificaiton
SL-4L
Hot Peel Glossy Finish Heat Transfer PET Films
48 x 64 cm, 75 micron - 50,000 sheets
Inspection ItemsInspection MethodInspection ResultsJudgment
Thickness of
the finished films
Thickness Instruments77 micron, 78 micron,
78 micron, 78 micron, 78 micron
ok
Matte DegreeGlossiness Instrument1.5, 1.9, 1.5, 1.8, 1.9,ok
Thermal ShrinkageDrying box
(180ºC / 1min)
48.20 × 63.60 cm, 48.20 × 63.60 cm,
48.20 × 63.65 cm, 48.20 × 63.65 cm,
48.20 × 63.60 cm
ok
Static Electricity ValueResistance Tester109.1ohm, 109.2ohm, 109.2ohm,
109.1ohm, 109.2ohm,
ok
AppearanceThe release agent coating shall be uniform. and there shall be no pattern and scratch, etccomply with requestok
The surface of the films shall be free of dirt and white powders.comply with requestok
No ruffles, no joints or damages on the film.comply with requestok
Release forceTension Test(N),
Testing Speed:300.000mm / min
Averge release force
2.9N, 3.5N, 2.8N, 2.7N, 3.0N.
ok
Inspector: Hang Nie Auditor: Longhua Hu( the factory director)




Dongguan Xinhe Heat Transfer Materials Co., Limited
Add:Room 54,Eleven Road,Longyan Industrial Zone Humen Town,Dongguan City, China


Technical Data


Item No.: SL-4L -heat transfer PET films & heat transfer papers


Specification: Hot Peel Glossy Finish Heat Transfer PET Films, in size 48 x 64 cm, 75 micron.

Remarks: Suitable for offset printing and screen printing,color bright and no sand hole, good separation effect and no bite color,hot stamping temperature of 140 degrees, and only need 15 seconds, antistatic treatment on the back.


PROPERTYUnitMethodValue 75u
Substanceg/sqmInternal80±6
CalipermicronInternal80±2
Coating weightg/sqmInternal10.0±1
Tensile strength(md)MpaASTM D 882> 150
Tensile strength(td)MPaASTM D 882> 150
Elongation at break(md)%ASTM D 882> 80
Elongation at break(td)%ASTM D 882> 70
Opacity%ASTM D 882<15
Release forceNInternal< 3
Shrinkage(md)
(150ºC*30minutes)

%

ASTM D 1204

< 0.5
Shrinkage(td)
(150ºC*30minutes)

%

ASTM D 1204

< 0.5
SURFACE RESISTIVITY
(antistatic side)
%ASTM D 257< 1010



The above information is given in good faith and is generally reliable. However,the customer will have to examine the suitability of the film for individual application, Hence no general or particular warranty for the applications fo the film is offered by us.-heat transfer PET films & heat transfer papers

The above information is liable to change due to innovation and improvement in the manufacturing process.We assume no liability for any infringement of any patent,copyright or design on the part of the customer while exploiting the filmfor different end-uses.-heat transfer PET films & heat transfer papers







Part Six: Packages and shipping of XINHE'S heat transfer PET films. -heat transfer PET films & heat transfer papers


 - Packages of Films- 250 sheets or 500 sheets per poly bag, 1,000 sheets per master carton, 20,000 sheets per pallet.
 - Packages of Films- 250 sheets or 500 sheets per poly bag, 1,000 sheets per master carton, 20,000 sheets per pallet.

- Packages - 250 sheets or 500 sheets per poly bag, 1,000 sheets per master carton, 20,000 sheets per wooden case.
-heat transfer PET films & heat transfer papers





Finally, Dongguan City Xinhe Transfer Materials Co.,ltd is a professional manufacturer of various heat transfer PET film,flocking film,Reflective Film,Lettering Film,Silicone Film,Digital Film. We always put quality first, pursue excellent ideas, and pay close attention to internal management and after-sales service. Xinhe is the only one enterprise which produces and markets products by oneself, with faster development, the best service and the most competitive price. Now with the help of clients around the world, Xinhe becomes the leader in the industry.-heat transfer PET films & heat transfer papers

Facing the fierce market competition, labor shortage, and the difficulty in the management of personnel issues, our company always thinks of customers' need. Our company has received a number of patents. We improve customer product level and reduce customer cost of the production. We use good technology to solve the problems in the production process and try to achieve the first goal of forming good relationships with domestic customers.-heat transfer PET films & heat transfer papers


And I am Echo who have been working in the field of heat transfer PET films for over 5 years. If you have any questions about heat transfer films & papers, feel free to call us, we'd like to help. thank you.



Dongguan City Xinhe Heat Transfer Materials Co.,ltd
Company Add: No.54,11 Road,Longyan Industrial Zone,Humen Town,Dongguan City,China
Website: www.xinhepetfilm.com
YouTube: https://m.youtube.com/watch?v=HjRcNOzio30&list=LLr9BChb7HsN1afyt5XOWPdA&index=2&t=24s






Certificates

  • CCC : OEKOTEXheattransferfilm
  • CE : SGSheattransferfilm
  • FCC : MSDSheattransferfilm

Price

  • Price Condition : FOB
  • Delivery Port : Shenzhen portChina

Packaging & Delivery

  • Packing :master cartonpalletswooden case500sheets per poly bag 1000 sheets per master carton 20000 sheets per pallet. or 50 rolls per wooden case.
  • Packaging Size : 50 x 66 x 10  Centimeters
  • Package Weight : 35  Kilograms
  • Delivery Lead Time : 7-10 days after we receive the deposit,4 days for ready goods.-heat transfer PET film
  • Supply Ability : 1000,000,000 sheets per month
